Navceker 18.5 Gbps HDMI Matrix 4x2 4K@60Hz HDMI Switch Splitter with SPDIF and L/R 3.5mm HDR HDMI Switch 4x2 Support HDCP 2.2 3D





Description:

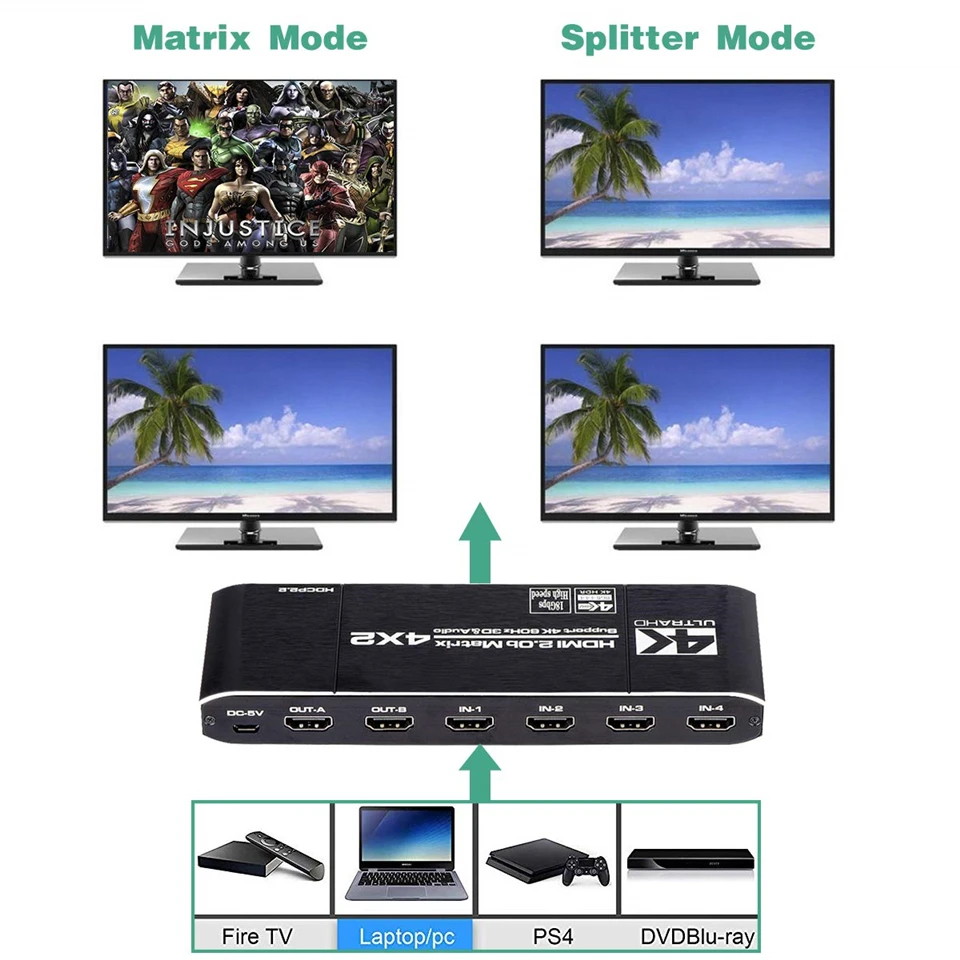

ZY-HM42,Navceker 4x2 HDMI Matrix Switch is with 4 HDMI inputs and 2 HDMI outputs. It is a true matrix and can distribute any one of 4 sources to either of 2 displays, and can work as a splitter to show the same source on 2 displays simultaneously. It  supports input and output resolutions up to 4Kx2K/60HZ

There are 3 models optional, different model has different interface and appearance, please choose suitable model before purchase:


(1) The Black color is ZY-HM42,HDMI 2.0b and HDCP 2.2,4K@60Hz  HDMI Matrix switch 4x2 with 16 EDID mode,2xSPDIF Audio and 2x3.5mm L/R Audio.

(2) The Red color is ZY-HM0402,HDMI 1.4 and HDCP 2.2,4K@30Hz  HDMI Matrix switch 4x2 with 10 EDID mode,2xSPDIF Audio and 2x3.5mm L/R Audio.

(3) The Blue color is ZY-HM42A,HDMI 2.0b and HDCP 2.2,4K@60Hz  HDMI Matrix switch 4x2 with 8 EDID mode,1x3.5mm Jack,1xSPDIF Audio,1xCoaxial Audio,HIFI and ARC.

Features:

Excellent Quality

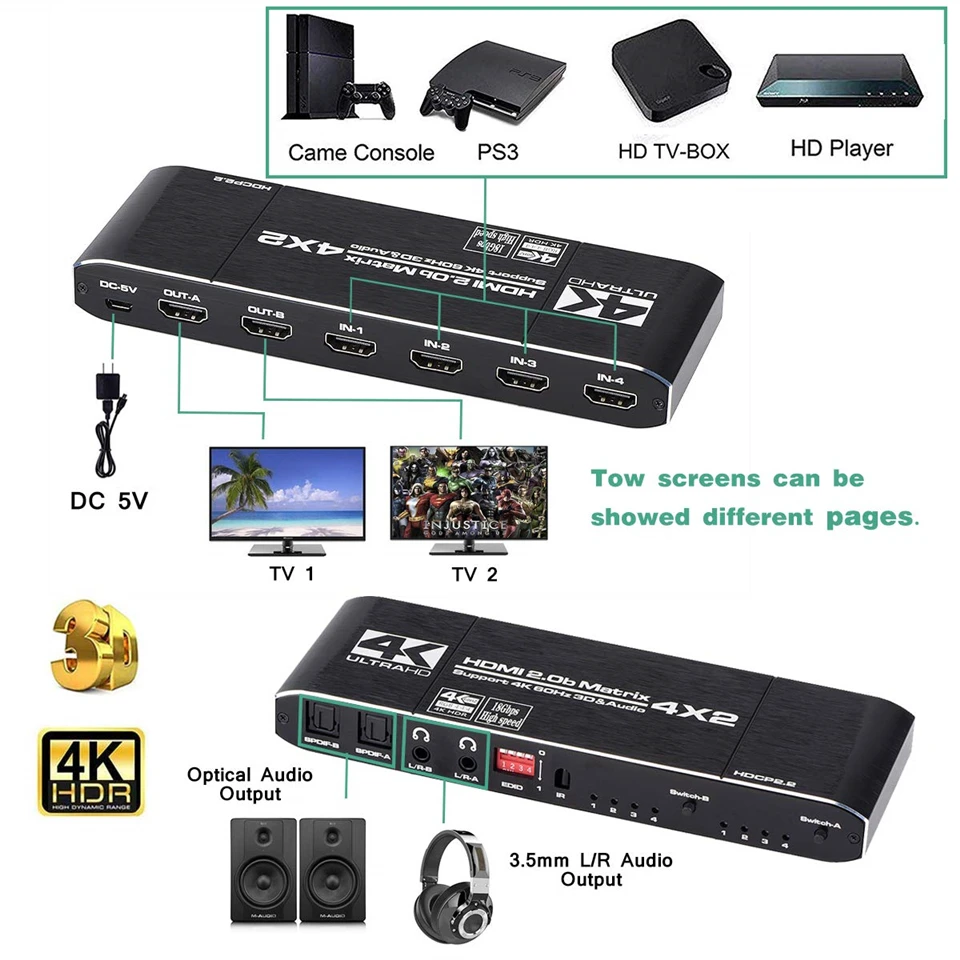

  • HDMI Matrix Switch 4x2: HDMI Matrix Switch can connect four 4K HDR signal sources to two HD display or monitor，and it can also extract the HDMI input Audio signal with Toslink SPDIF optical fiber or 3.5mm stereo headphone output.. This 4x2 HDMI Matrix Switch can also control by a IR remote control.it allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors.Ideal solution for home theater, office, school, conference room, shopping mall, hotel or museum
  • High Resolution: 4K@60Hz, 4K HDR, 3840x2160@60Hz, Ultra HD, 3D, RGB 4:4:4. Support 18.5Gbps data rate and tmds clock up to 600Mhz. Support deep color 8/10/12/24/32/48bit. It supports HDCP 2.2, HDMI2.0b, 4K@60HZ, RGB4:4:4, 4K HDR

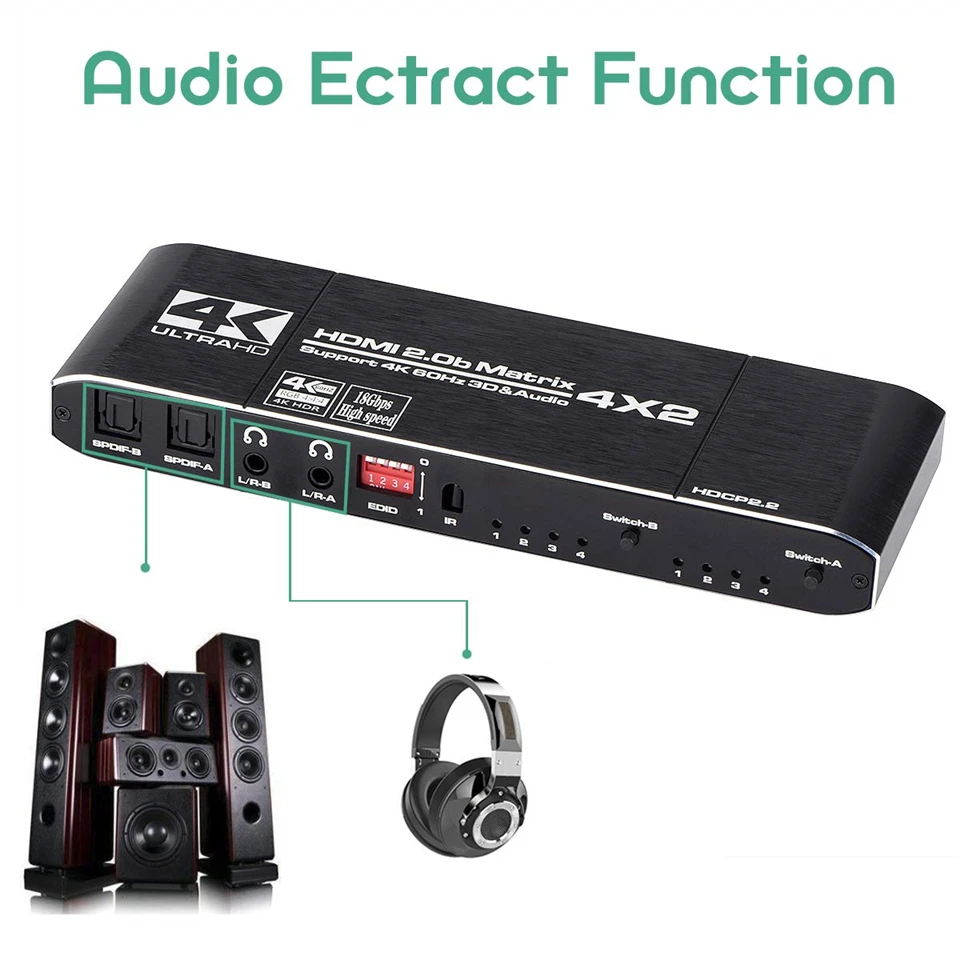

  • HDMI Audio Extract and Settable EDID: Supports LPCM/Dolby/DTS 5.1 channel and smart EDID management.Any input HD source can do audio extract by the SPDIF or 3.5mm headphone audio output port separately or at the same time.Built-in IR sensor comes with a handy, intuitive remote control that makes switching inputs,it can do also switch by press button. Note: AAA battery needed，and pls confirm your audio format is correct
  • Compatibility: Support HDCP 2.2, compatible with HDMI 2.0b. Input support: Computer, PS3, PS4,PS4 pro, Xbox, Xbox one, Nintendo Switch, HD player, Fire TV, Apple TV etc. Output support: Projector, HDTV etc.
  • What you Get:1x HDMI Matrix Switch 4x2, 1xUser Manual,1xPower Adapter,1xIR Remote Control, Anber-Tech also offers a full 30 day 100% money back guarantee and 365 days warranty, please contact us if you have any problems

4x2 HDMI Martrix Switch
The 4 in 2 Out HDMI Matrix Switch allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. It is suitable for home theater, villa, conference room, shopping mall, video wall, school and corporate training environments etc.

Specifications
- Product Type:HDMI Splitter 1x4.
- Interface Type: 4 HDMI in, 2 HDMI out
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Operating Temperature range -15°C to+45°C
- Dimension (LxWxH): 170*56*24mm
- Weight: 0.175kg

Features
- Support HDMI 2.0b HDCP 2.2
- Support 3D video format
- Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit
- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
- 4 HDMI inputs switch and split to 2 HDMI displays
- Support LPCM/Dolby/DTS 5 1 audio

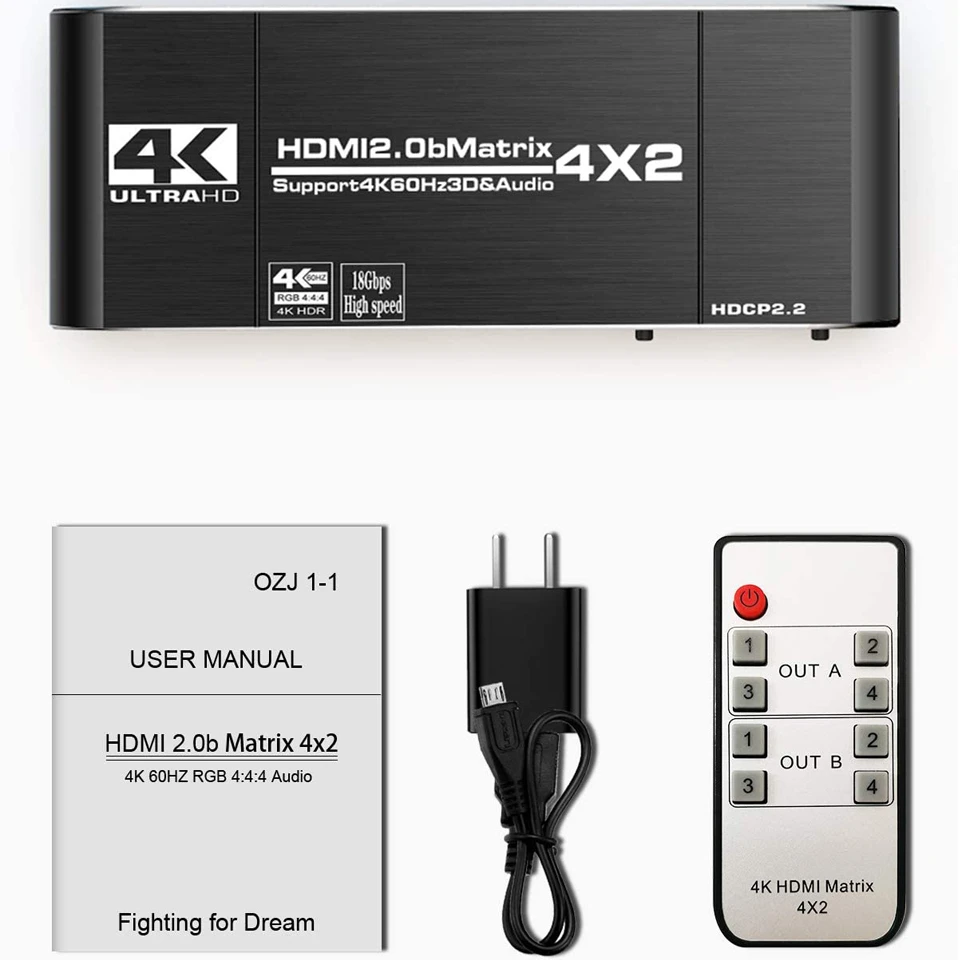

Package contents
1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Note:

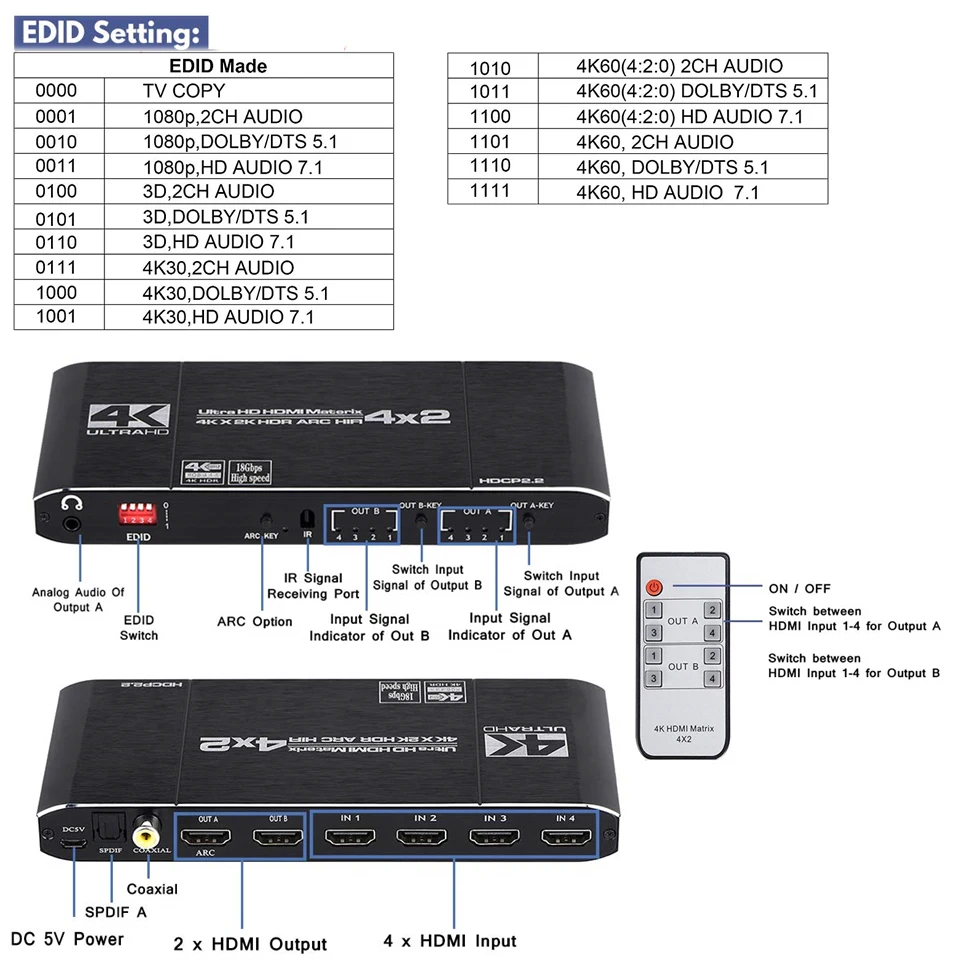

EDID the dial switch to dial downward is 1, dial upward is 0.
1. The Remote Control instruction:
(1) The four buttons on OUT A is the corresponding input source IN1-IN4from OUT AJN1-IN4 can be switched freely.
(2) The four buttons on OUT B is the corresponding input source IN1-IN4 from OUT B, IN1-IN4 can be switched freely.
2. Instruction of Buttons and LED:
(1) Instruction of LED: W1-IN4 indicator is the corresponding input sources out from OUT A or OUT B,
(2) Operation of Buttons: SWITCH A or SWITCH B is used to switch the corresponding inpul source out from OUT A or OUT B.主图271QtG0q6-4L._SL1200_71bjQgE5hhL._SL1200_71UnC22hQAL._SL1100_71irlMSfMIL._SL1200_618Kzb4CGKL._SL1200_71TDOLPXKTL._SL1200_71THVWMvTTL._SL1200_
